Description

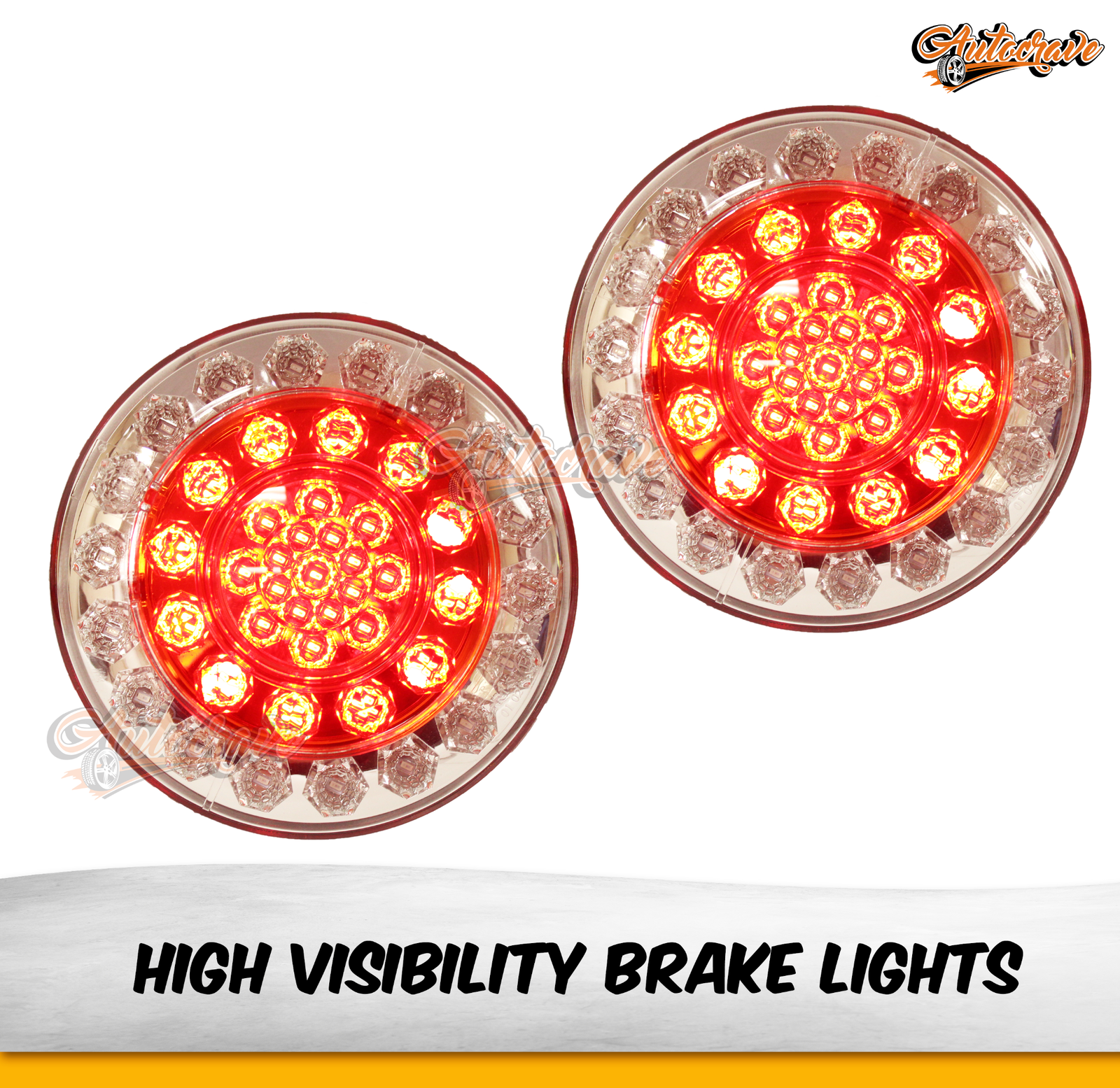

ROUND LED TRAILER CAR TAIL LIGHT TRUCK CARAVAN UTE BOAT STOP REVERSE INDICATOR

LED Combination Tail Light to suit various trailers with dimensions of 120X30mm.

Suitable for replacement or new vehicles.

Don't settle for anything less! These lights are top quality for amazing price.

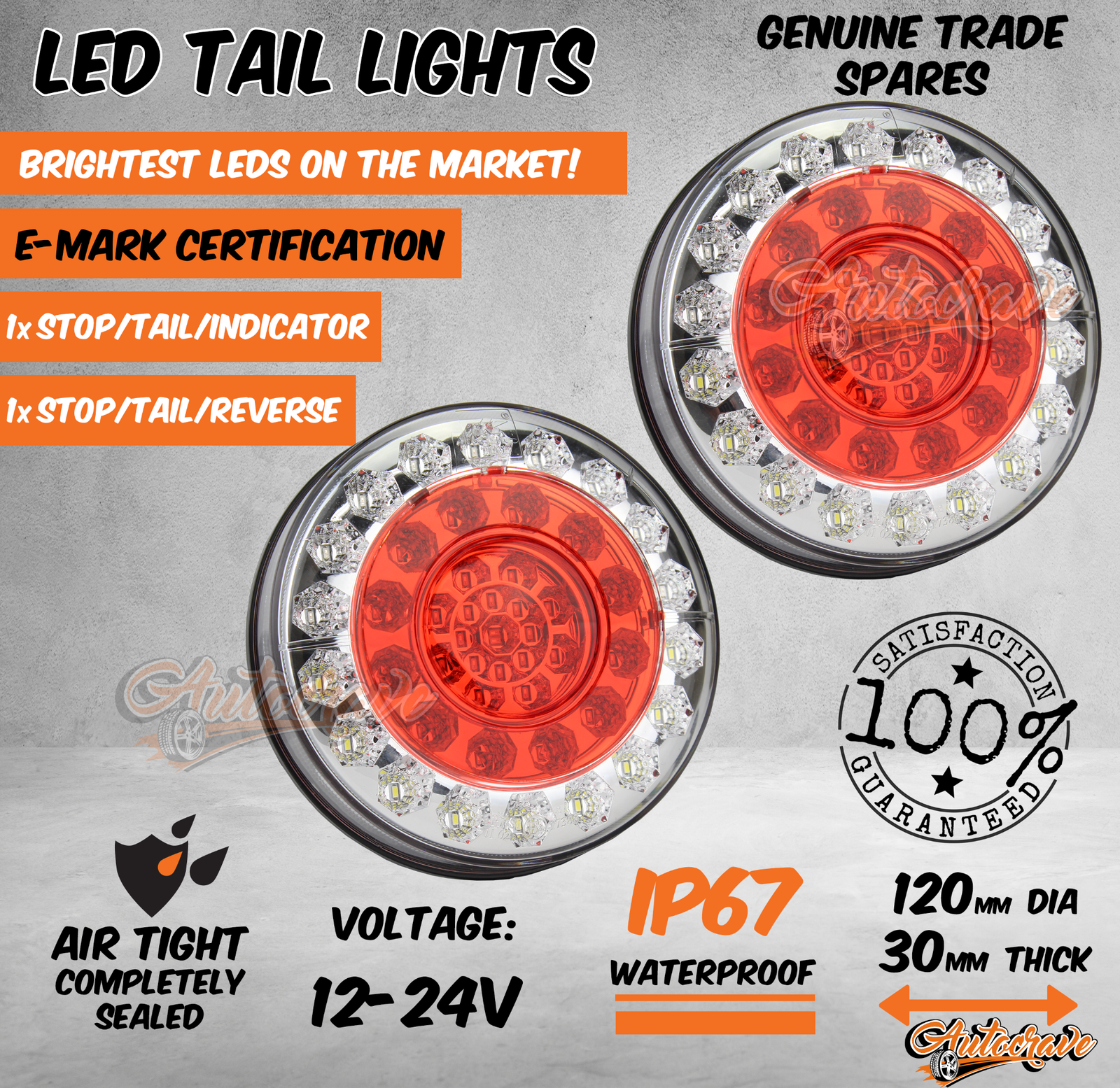

Features:

ADR Compliant Voltage
12-24 Volt
E-MARK Certication
Integrated Reflector
Designed & Manufactured For OEM Companies
10 HIGH QUALITY LEDS
30cm of 4 Core Cable Attached!
5 Year warranty to cover all LEDS!
Function Light 1: Stop/Tail/REVERSE

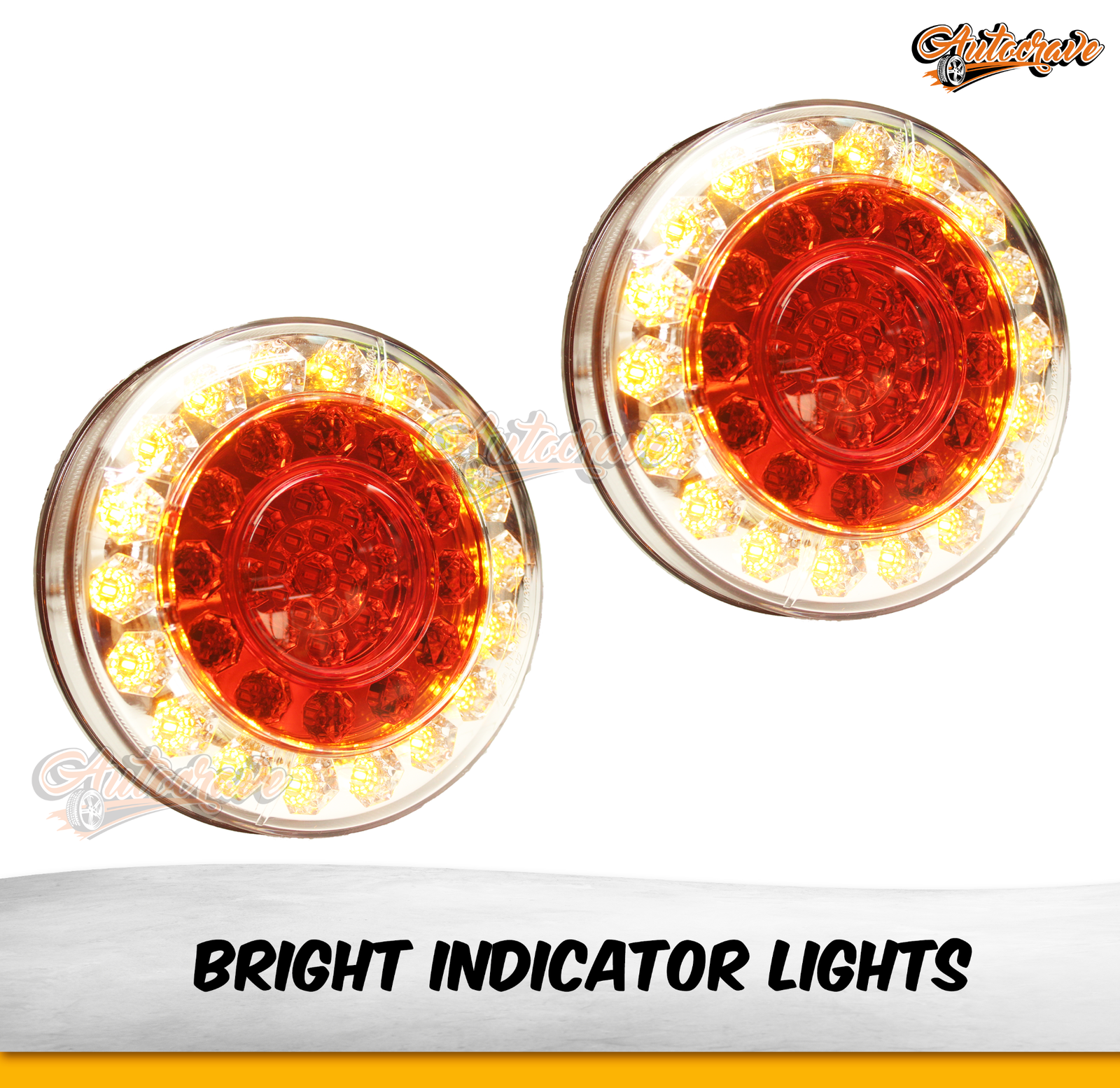

Function Light 2: Stop/Tail/INDICATOR
Air Tight & Completely Sealed

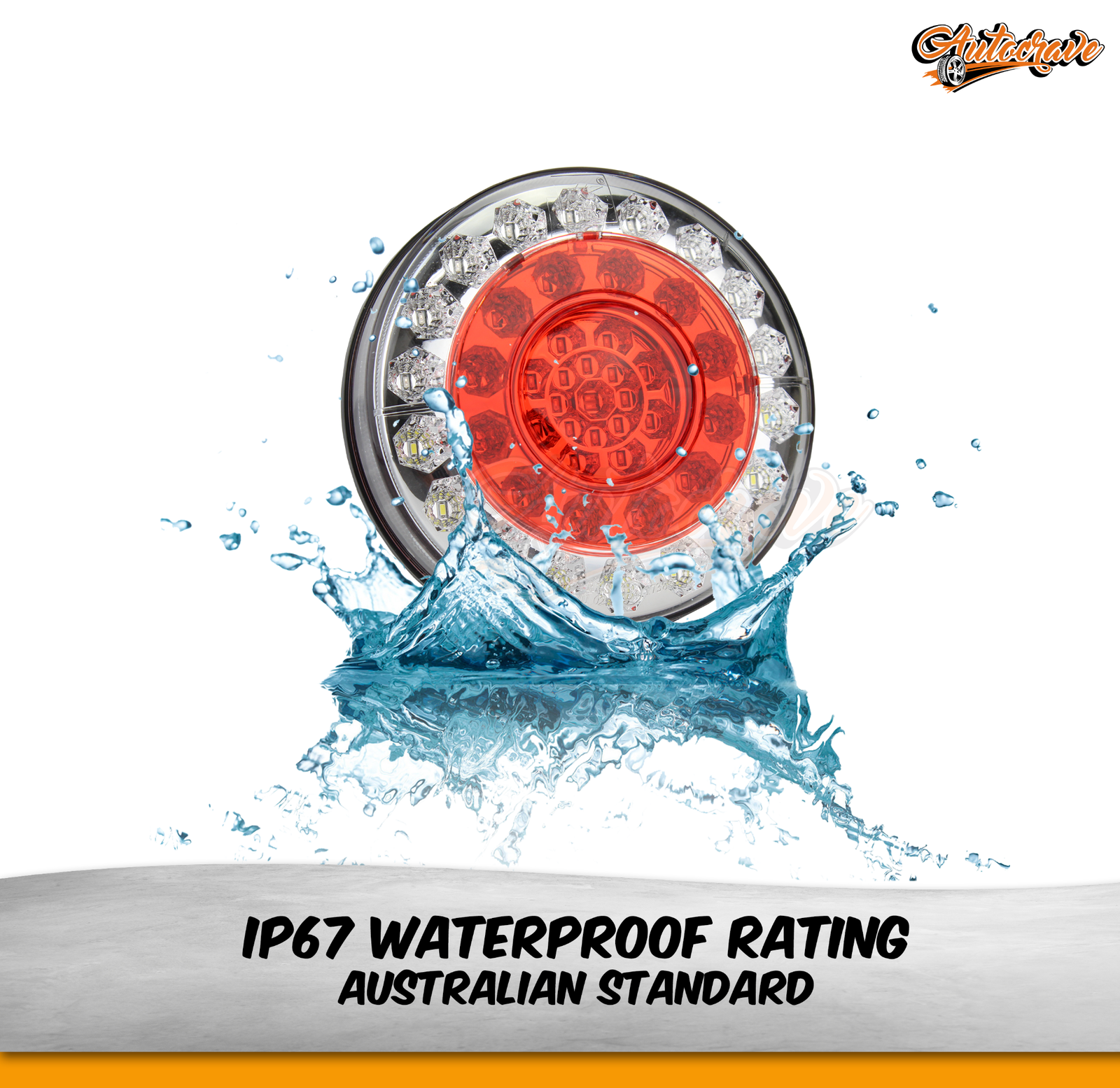

Waterproof IP67 Rating

WIRING INSTRUCTIONS:

WHITE = EARTH
RED = STOP
BLACK= REVERSE
YELLOW = INDICATOR
BROWN = TAIL

ORDER INCLUDES

1 x LED LIGHT With Reverse Function (LED122RC)
1 x LED LIGHT With Indicator Function (LED122RA)

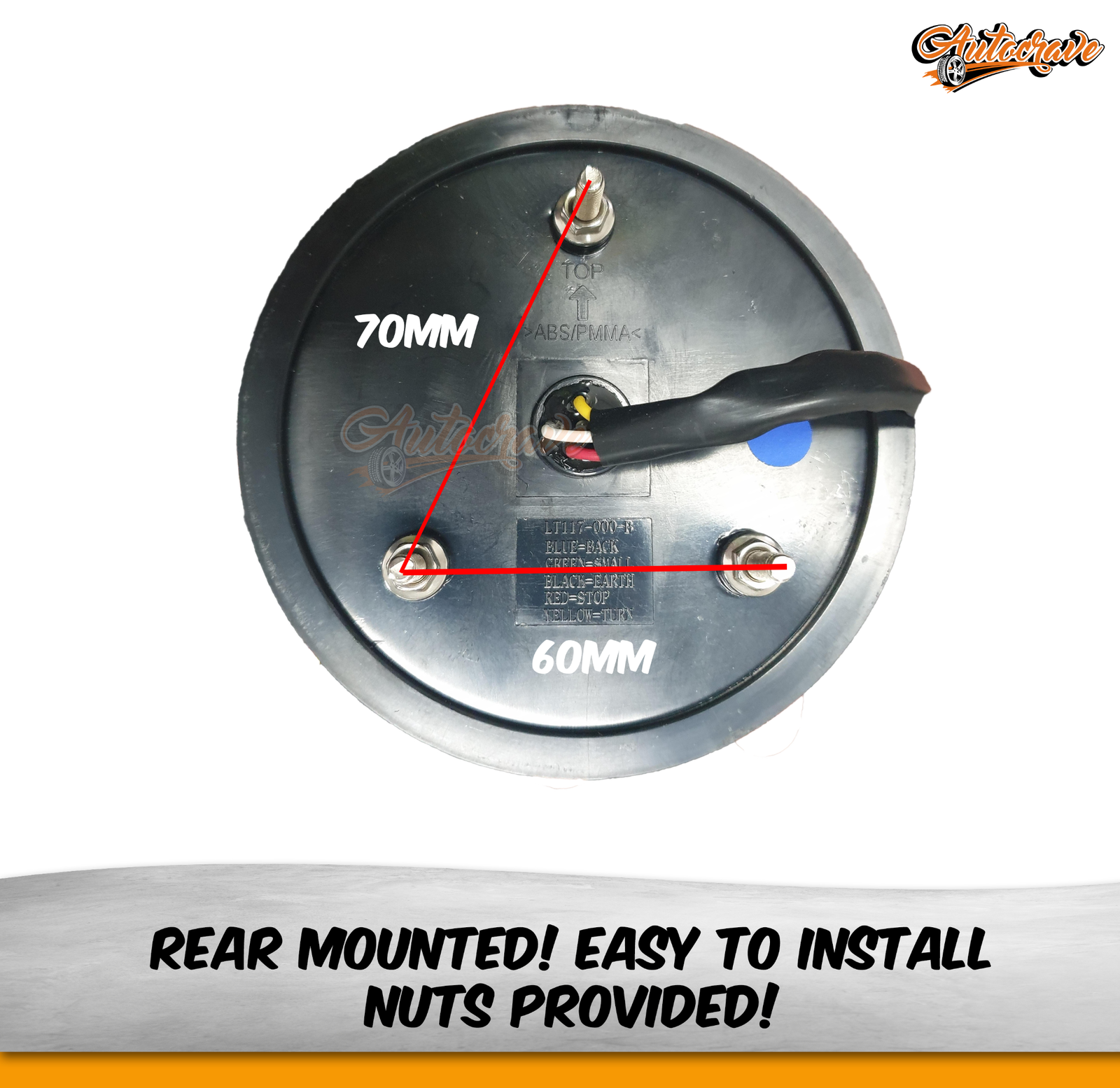

DIMENSIONS & SCREW MEASUREMENTS:

Dimensions: 120 x 30mm
Mounting: Screw In 3 Bikts
Bolt Spacing: 70mm and 60mm

Please note Warranty does not cover any physical abuse/misuse, accidental damage, water/moisture damage, accidents, spills. Please Note, these two light each have separate function, one has Indicator one has Reverse and work together as a pair (two on each side).

If you have any queries please contact us via eBay message.

We thank you for considering Autocrave Australia and look forward to dealing with you soon.

Specifications

Features	LED Light
Upc	Does not apply
Custom Bundle	No
Design	For OEM Companies
Size	120x30 mm
To Control	Tail Light
Brown Wire	Tail
To Fit	Tail Light
Yellow	INDICATOR
Type	Tail light
Voltage	12-24V
Compliancy	ADR Compliant (Australian Standard)
Black Wire	Reverse
Red Wire	Stop
Operating Lifetime	>100000Hrs
Placement On Vehicle	Front, Rear, Left, Right, Top Roof Truck Bed
Certification	E-MARK
Modified Item	No
Suit	Truck, Caravan, Camper, Trailer
Product Type	LED Round Tail Lights
White Wire	Earth
May Suit	Multiple Car Models: C3 Corvette
Warranty	5 Year
