Hydraulic Ram Tipper Kit Heavy Duty!

NO REDUCED MATERIAL IN PRODUCTION, MEANS A MORE HEAVY DUTY RAM

ADR Compliant and made to Australian Standards

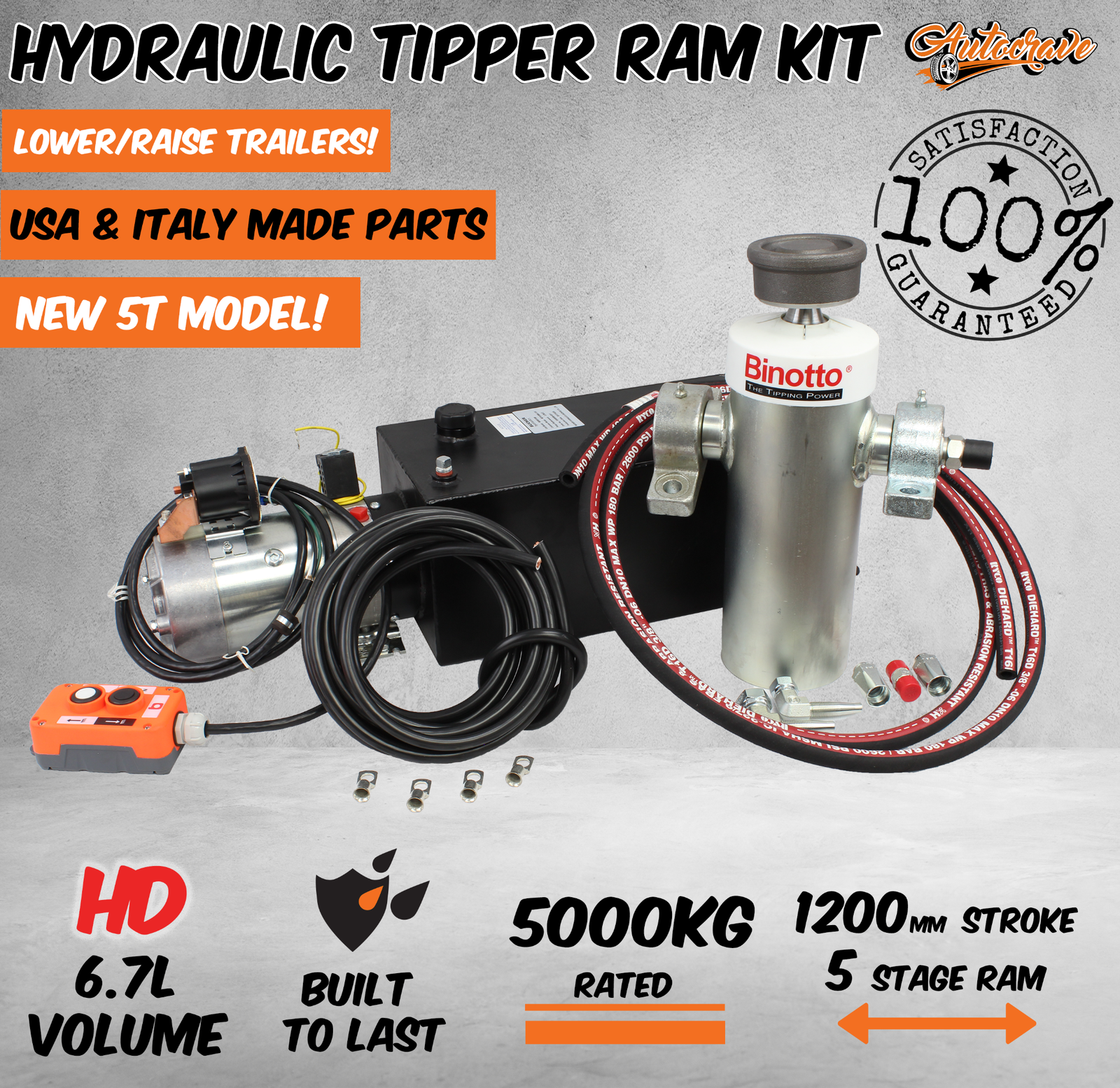

Order Includes:
1 x Hydraulic Ram 1200mm Stroke 5 Stage rated 5000kg

1 x Hose and Fittings

1 x Remote

1 x 12V Pump Tank

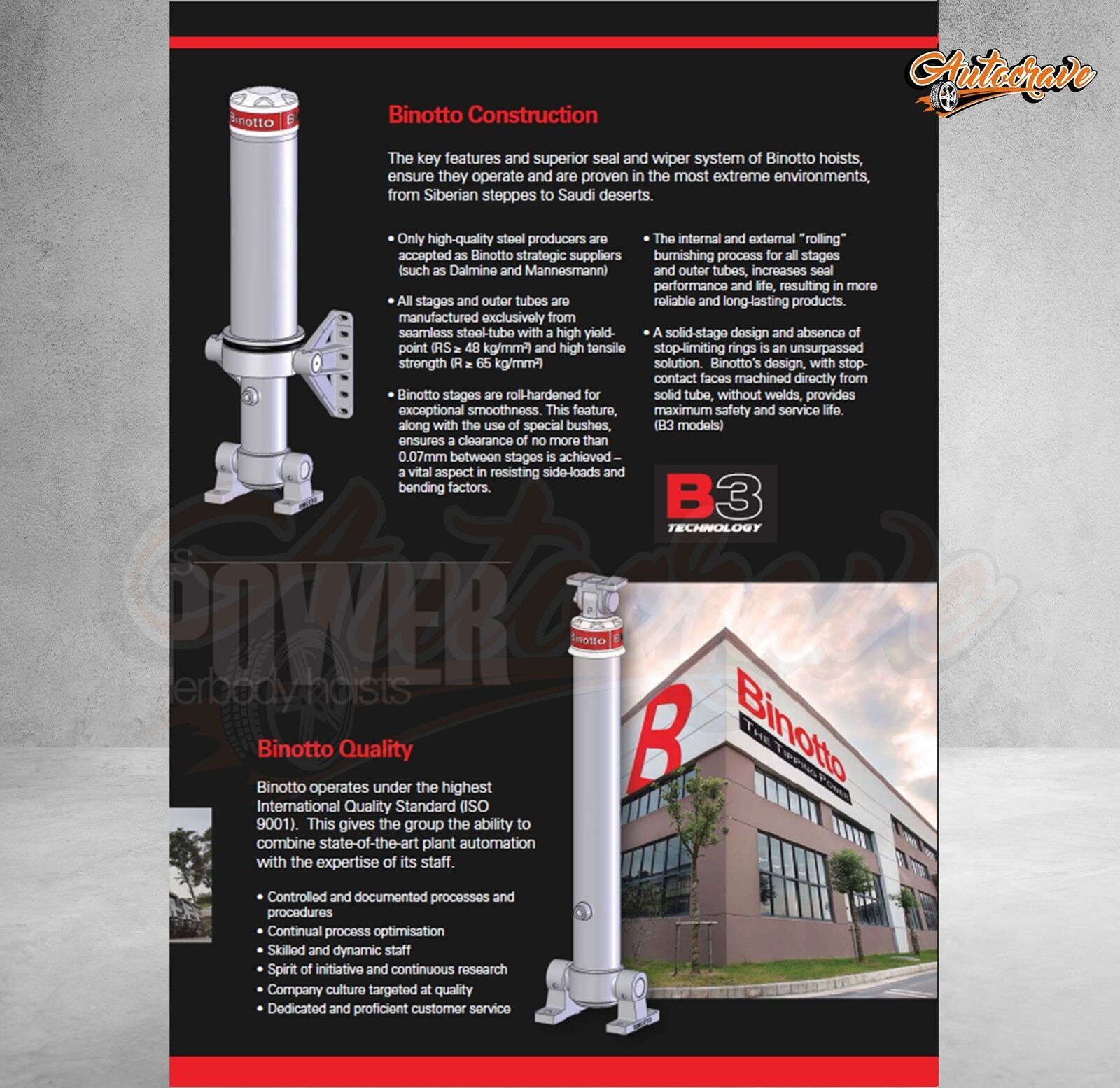

THE CONSTRUCTION:

• Only high-quality steel producers are accepted as our strategic suppliers (such as Dalmine and Mannesmann)
• All stages and outer tubes are manufactured exclusively from seamless steel-tube with a high yield point (RS 48 kg/mm²) and high tensile strength (R 65 kg/mm²)
• Our stages are roll-hardened for exceptional smoothness. This feature, along with the use of special bushes, ensures a clearance of no more than 0.07mm between stages is achieved – a vital aspect in resisting side-loads and bending factors.

• The internal and external “rolling" burnishing process for all stages and outer tubes, increases seal performance and life, resulting in more reliable and long-lasting products.
• A solid-stage design and absence of stop-limiting rings is an unsurpassed solution. Our design, with stop contact faces machined directly from solid tube, without welds, provides maximum safety and service life. (B3 models)

SPECIFICATIONS:

• Tipping hoists are designed as a lifting device only, for longitudinal-axis loads. They must not be used as a structural member or be subject to side load.
• Allowable hydraulic-oil temperature range is -40°C to +80°C. • Maximum duration of extension is 2 hours.
• The overall dimensions of the pump (Black box plus head) is 620x185x160mm approximately
• The dimensions of the black box alone is 380x185x160mm approximately
• please allow for 5-20mm for manual measurements of all items

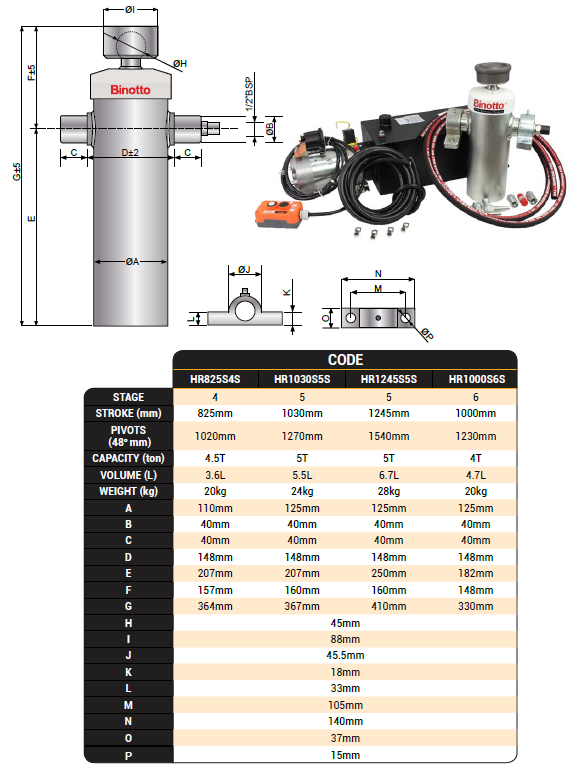

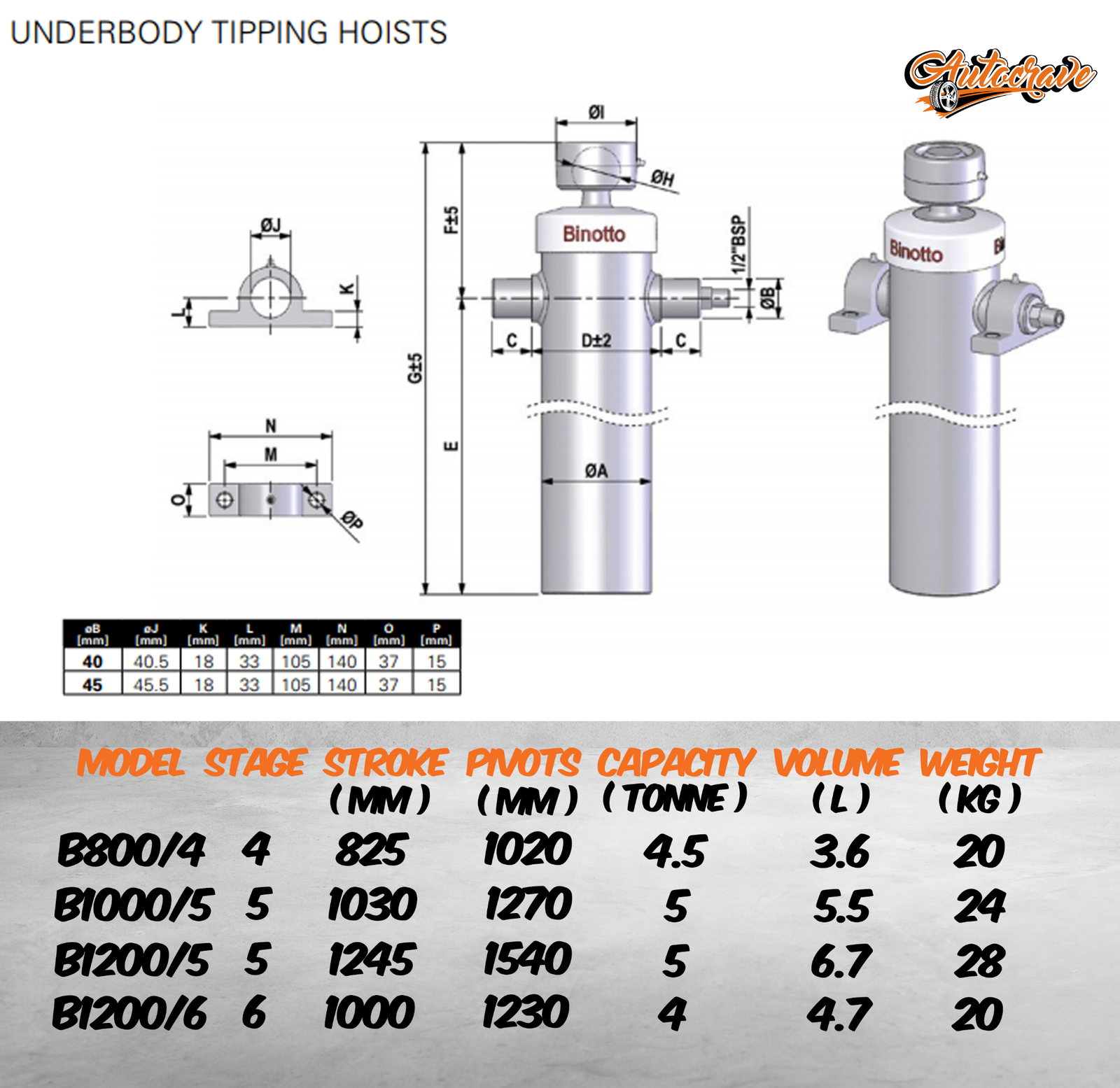

• dimensions of the ram can be seen in the photos attached!
