Heavy Duty Electric Jack Stand

The Product:

• Electric jack lets you raise and lower your A-frame trailer
• Drop leg allows for increased lift and saves time when raising or lowering
  • Pin and clip holds leg at desired location
• 2 Toggle switches on the front of the housing let you operate the jack
  • On/off switch controls light
  • Extend/retract switch controls up and down movement
• LED light illuminates at a downward angle to help you focus on your coupler

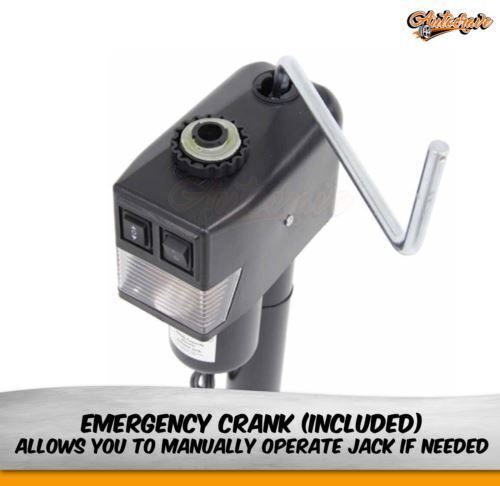

• Emergency crank (included) allows you to manually operate jack if needed
  • Requires a 3/8" socket to use the manual crank
• Black powder coated outer tube
• Zinc-finished inner tube and footplate resist corrosion
• Simple, bolt-on installation
  • Wires to 12-volt power source
    • 12-Gauge wires
  • Serrated washer included for ground connection

The Jack Standneeds to be powered by a 12V battery(Not Included)

It can be used in manual mode (freewheel option) by using Handle Provided

Specifications:

• Bracket height:
  • Retracted: 9"
  • Extended: 28-1/2"
• Total lift: 25-1/8"
  • Screw travel: 19-1/2"
  • Drop leg travel: 5-5/8"
• Clearance:
  • 20-1/2" From bottom of bracket to top of jack
• Outer tube diameter: 2-1/4"
• Inner tube diameter: 2"
• Hole spacing on drop leg: 1-7/8"
• Footplate diameter: 5-1/2"
• Lift capacity: 1587kg (3,500 lbs)

Order Includes:

• 1 x 12V Electric Jack Stand
• 1 x Operating Handle
• Washers
